Working Principle

The sensor detects the product passing return signal to the control labeling system, PLC signal after processing, at the appropriate time delivering the label attached to the product in the set position, the product flows through the cover label, labels, coated solid, a label attached to the action is completed. *

Procedure: put the product (which can be accessed pipeline) -> product delivery (automatically) -> Products correct (automatically) -> Product Inspection (automatically) -> labeling (automatically) -> Cover standard (automatically) -> label products have been collected.

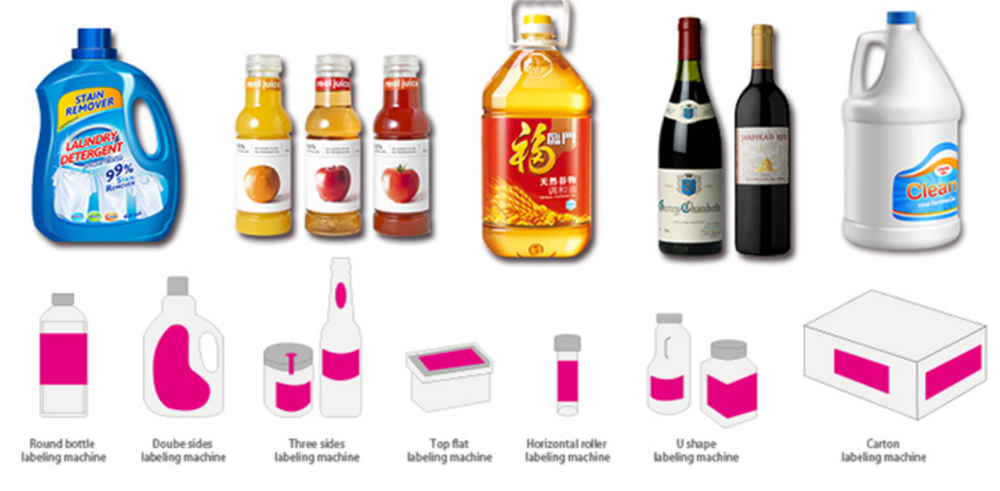

Application

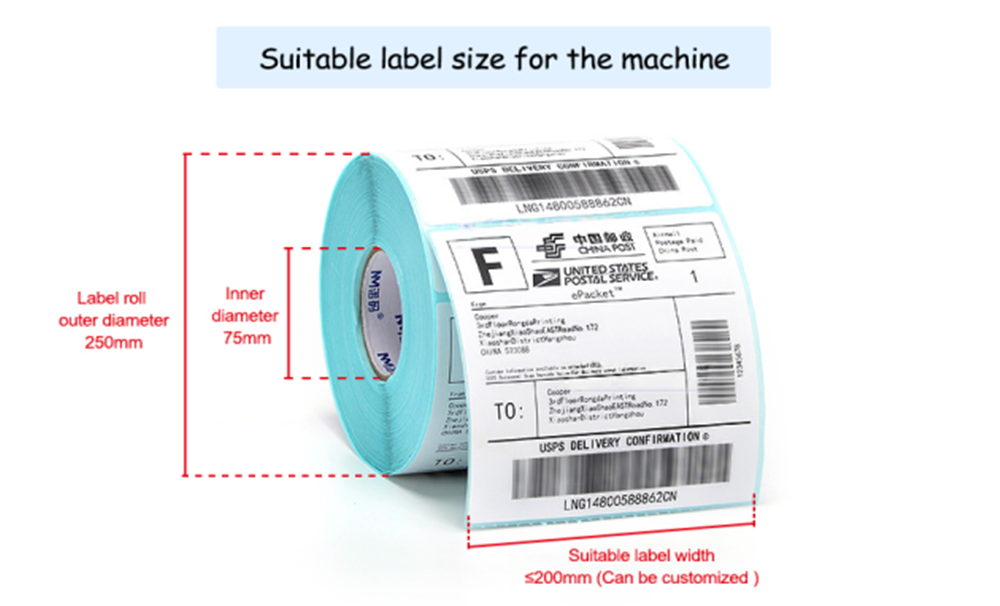

1,For label: self-adhesive labels, self-adhesive film, electronic supervision code, bar code, etc.

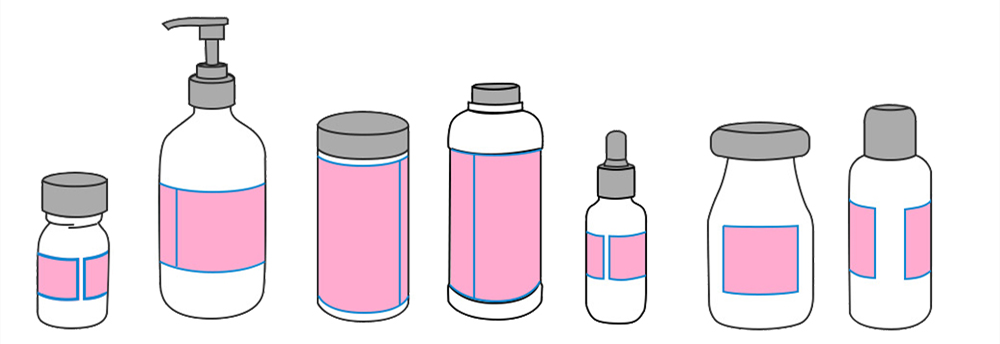

2,Applicable products: Requires circumferential surface or a small cone attached to the surface membrane of the small label or product.
3,Application: Glue bottle labeling, oral liquid bottle labeling, labeling pen, lipstick labeling and so on.

Main Features

1) Wide application range, can meet the needs of all round bottle labeling or semi circle labeling, labeling switching between the bottle is simple, easy to adjust
2) The label accuaracy is good, the tape detour adopts the rectifying mechanism, the tape does not deviate, the three directions of the labeling position x / y / z and the inclination are adjustable with eight degrees of freedom, and the adjustment has no dead angle.
3) The label quality is excellent, adopt the elastic press cover belt, the label is flat, no wrinkle, improve the packing quality.
4) The application is flexible , the bottle standing type labeling machine is provided with an automatic bottle separating function , can be produced in a single machine , and also can be connected with the production line.
5) Intelligent control , automatic photoelectric tracking , non - labeling , non - standard automatic correction and label auto - detection , prevention of leakage and label waste.

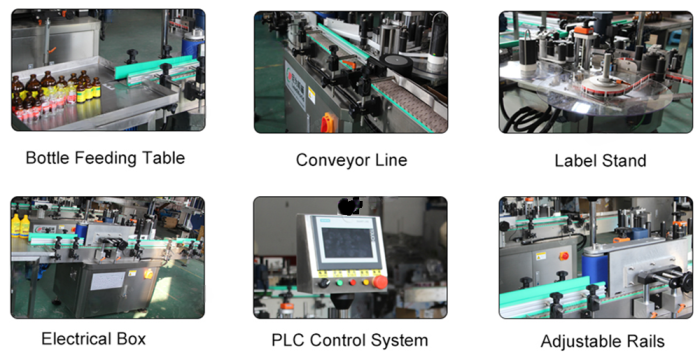

6)High stability, The supporting equipment runs 7 × 24 hour,Mitsubishi PLC,SIEMENS Touch ,KEYENCE bottle sensor,Leuze high accuracy label sensor.
7)The adjustment is simple , the labeling speed , the conveying speed and the bottle separating speed can realize stepless speed regulation , and the adjustment is carried out according to the requirement.
8)Strong and durable, adopt three bar adjusting mechanism, make full use of the stability of triangle, the whole machine is solid and durable. It is made of full ss304 stainless steel,which is in line with the requirements of GMP production.

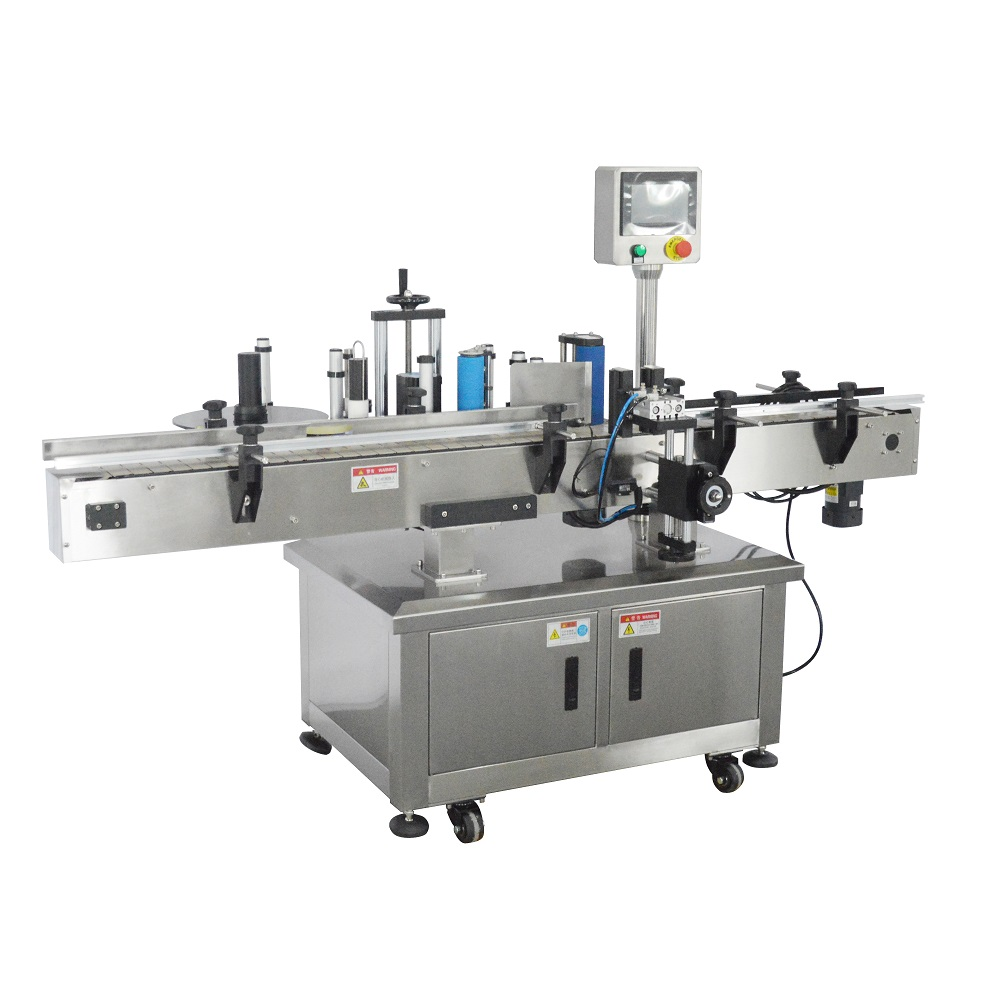

Single Side Adhesive Labeling Machine

Label Type :Single side Label

Labeller station :1pcs

Bottle Shape :Round Bottle & Square bottle & Flat bottle &oval bottle (Customized)

Capacity: 3000-8000 bottles/hour

Total power :0.75kw

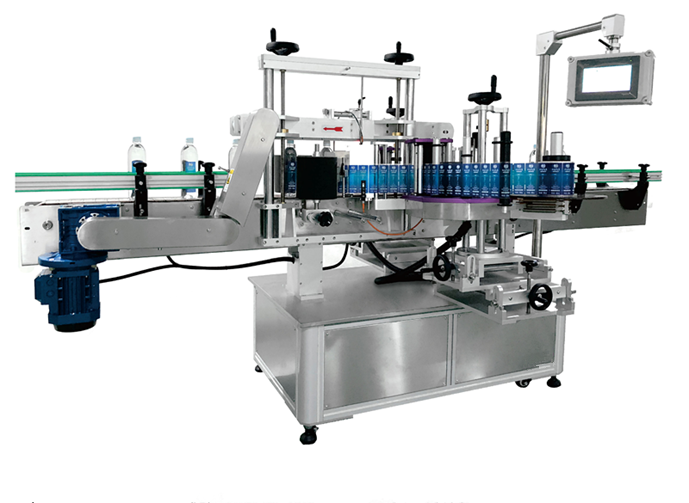

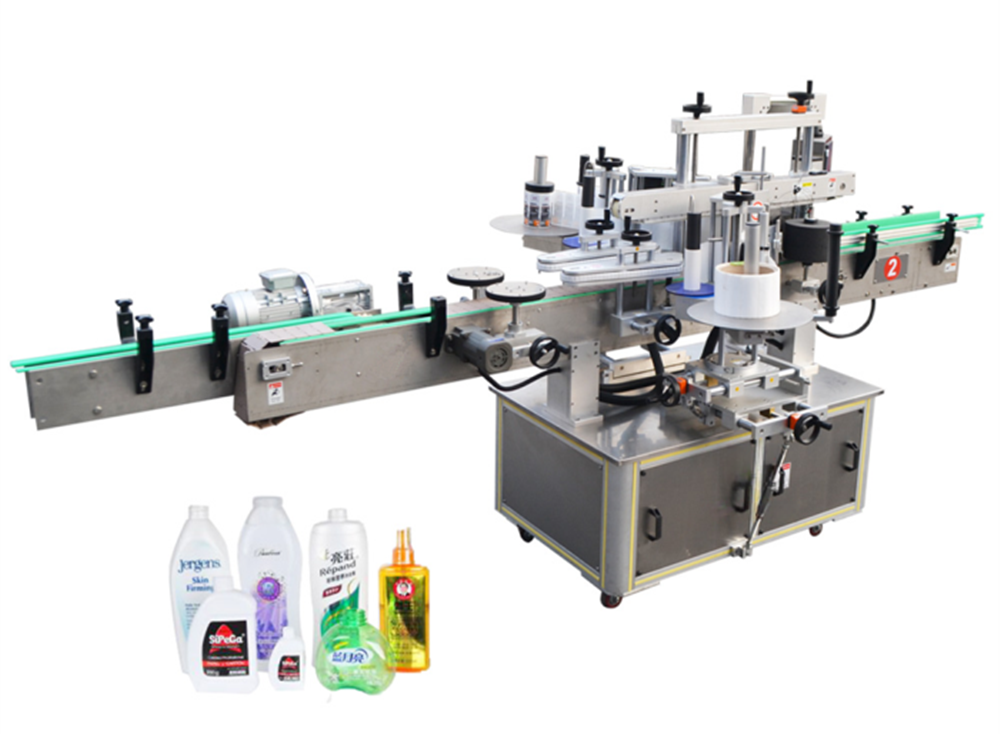

Double Side adhesive labeling machine

Label Type :Front Label & Back Label

Label stations: 2pcs

Bottle Shape :Round Bottle & Square bottle & Flat bottle & oval bottle (customized)

Capacity: 3000-8000 bottles/hour

Total power :1.1kw

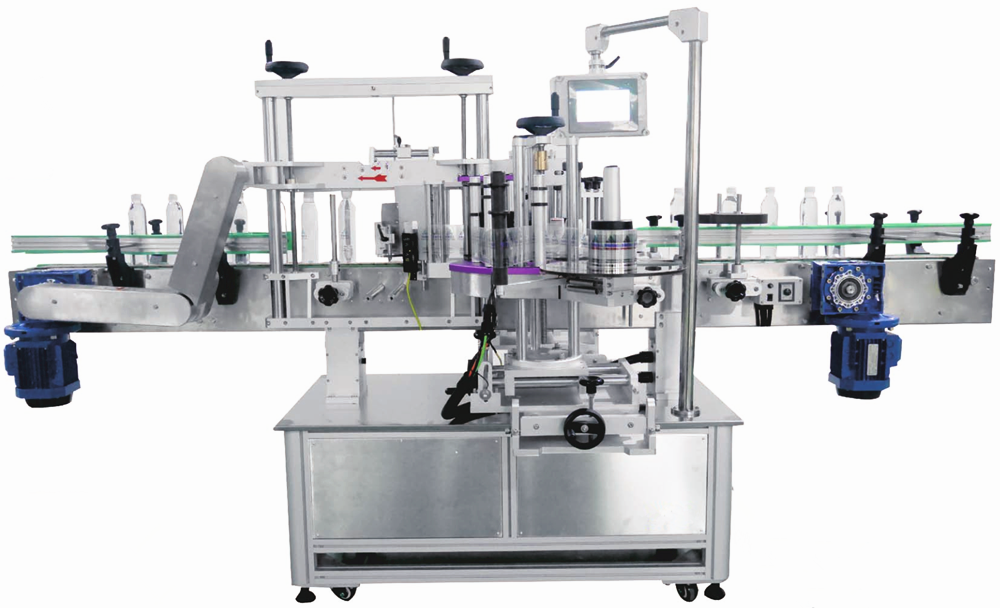

Three Side Adhesive Labeling Machine

Label Type :Front Label & Back Label &Top Label

Labeller stations :3pcs

Bottle Shape :Round Bottle & Square bottle & Flat bottle &oval bottle  (customized)
Capacity: 3000-8000 bottles/hour

Total power:1.5kw
