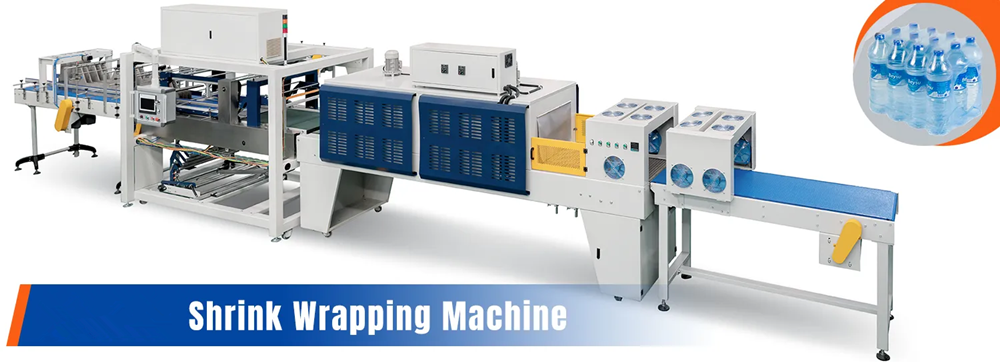

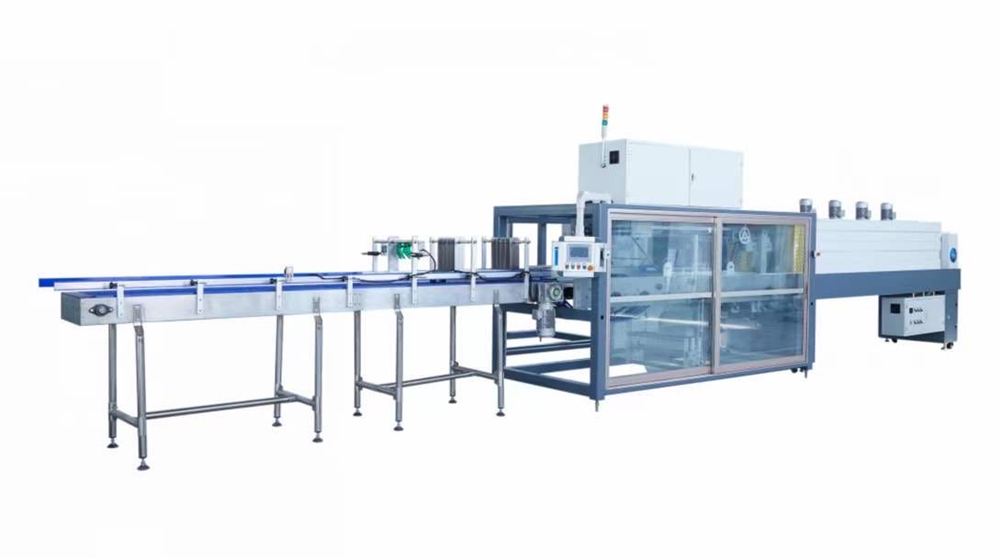

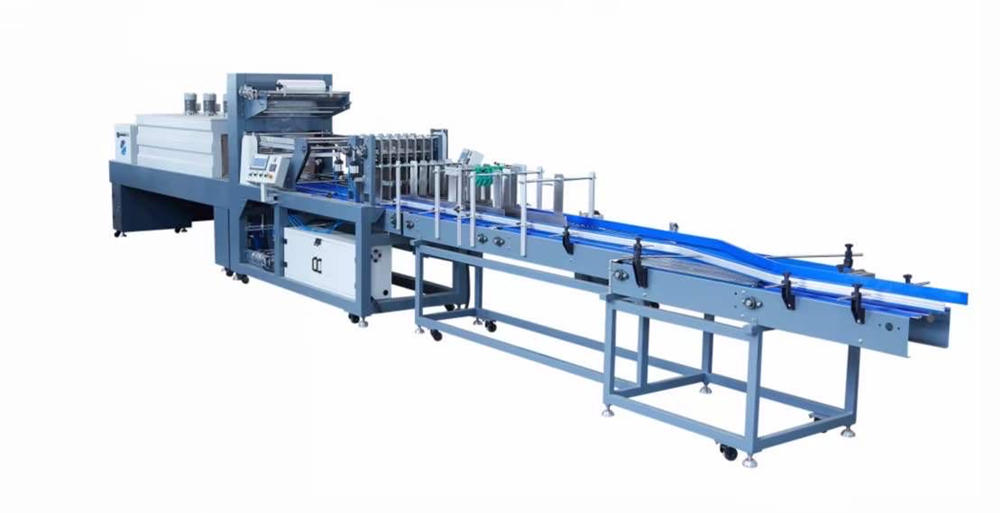

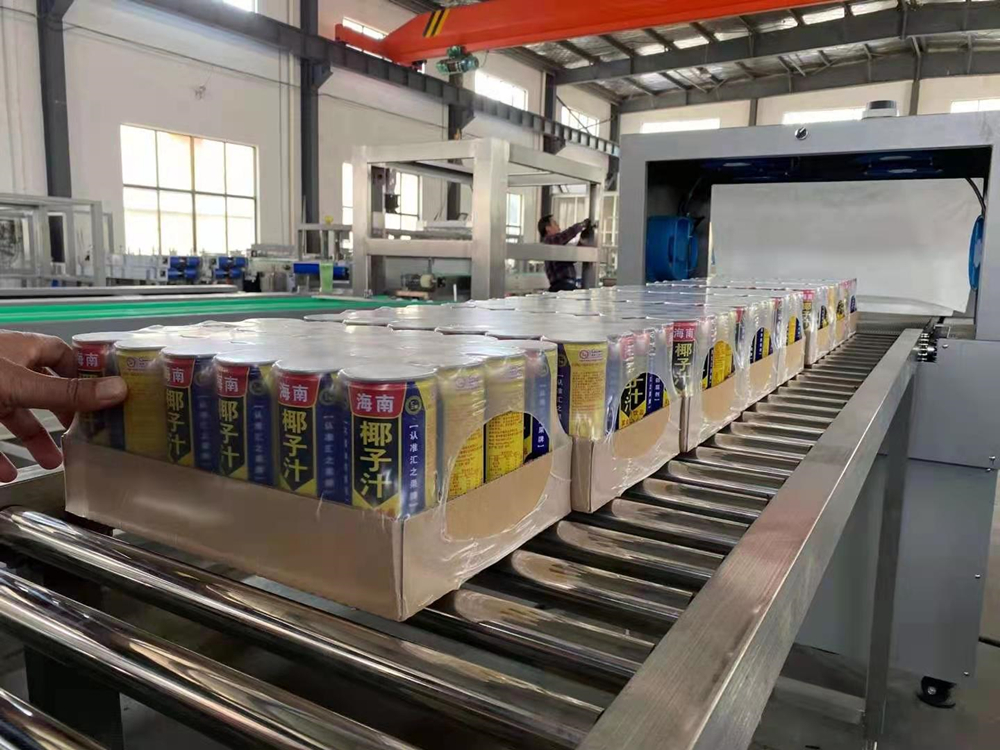

Full Automatic Linear Type PE Film Shrink Wrapping Machine.

In the packaging machinery industry, the film wrapping machine is the abbreviation of the wrapping film packaging machine,sometimes called the winding machine and the wrapping machine.
It is suitable for the packaging requirements of cargo storage, transportation, and mechanical loading and unloading operations. Widely use the packaging cost of products such as foreign trade export, food, and beverage, irrigation, paper making, dyes, plastic chemicals, glass ceramics, machine S electroforming, etc., improve production efficiency, and prevent damage of goods during handling, and play Dust, moisture and cleaning.

Packing Machine Benefits

Ordinary film charter has a synchronous electronic gear, the electronic cam servo control system has long replaced the cumbersome mechanical cam mechanism, it is relatively easy to achieve the synchronization relationship between moving objects according to the designer's requirements. Several motion mechanisms of the film wrapping machine use the servo motor as the driving shaft to complete the task from feeding the bottle to feeding the paper to sending the film. The main drive using one servo motor will be used as the synchronization target for several other axes, and all angular phase relationships will depend on the main drive motor.

Control System.

The servo control system is fully capable of meeting the basic motion control of all motors of the film wrapper and the synchronous motion control between them. The man-machine panel, which integrates the logic control in the packaging process and has a display function, can transmit commands and motion characteristic parameters to the motion control part through the input of parameters and can feedback the running status and alarm of the front machine in time.

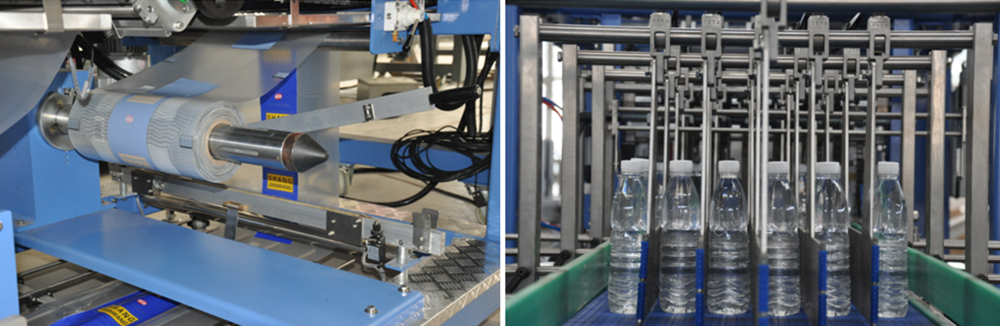

Injection Table.

- Film cutting by a servo-driven rotating knife (cold-cut blade).
- Film injection under the products by rubber-coated rollers.

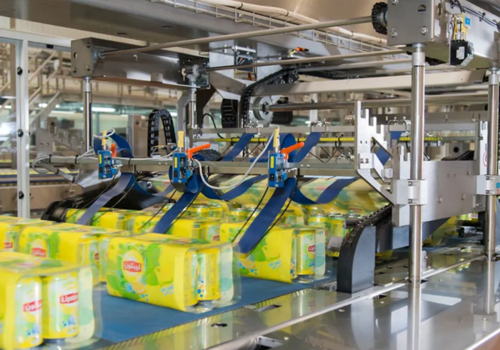

- Continuous lapping of the film around the products (motorized flight bar system).
- Detection of a spot or mark on the film design to ensure cutting at the printing pitch.

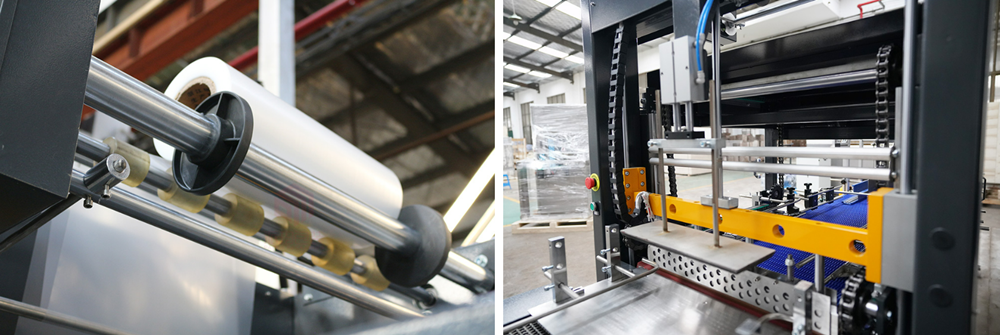

Film feeding and cutting, product lapping.

- Unwinding of film reels by motorized holders.
- Film reel support located outside the machine.

- The unwinding of the film between anti-static bars and feeding towards the injection table.
- To simplify reel changeovers, the end of the used film is spliced with the start of the film on the next reel by a thermal sealing bar.

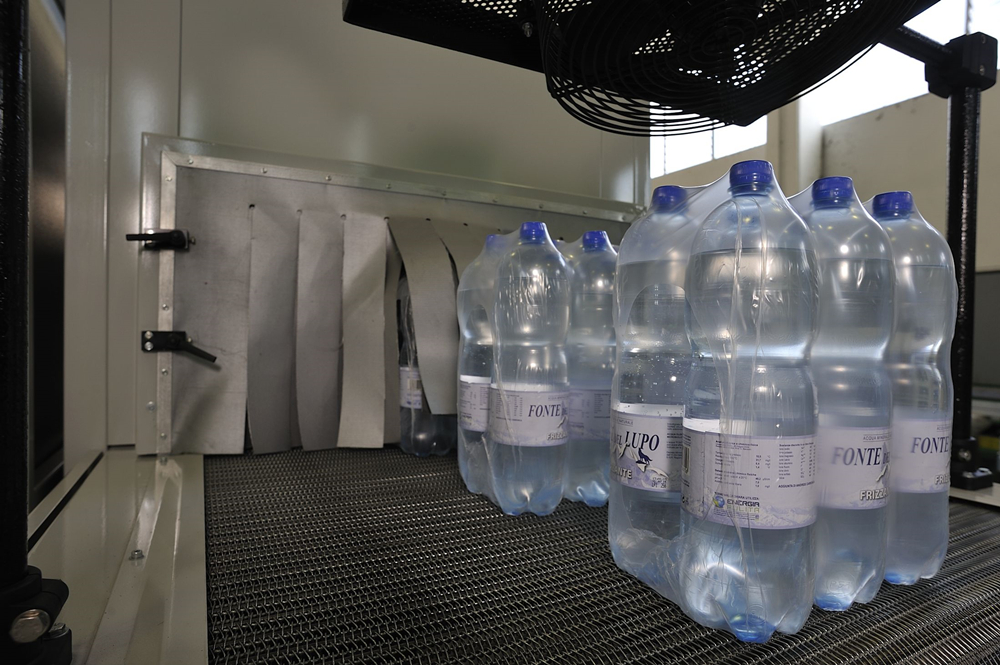

Heat shrinking tunnel

- Suitable for medium and small beverage output with flexible and easy operation.

- Unique thermal shrinkage passage with 2 sets of centrifugal thermal air circulation system that has an equal heat distribution with beautiful shrinkage effect.

- 3 layers of heat insulation treatment with good insulating property,quick temperature rise and energy saving.

- The enhanced cooling shaping passage can quickly turn the packaging membrane into high strength that is conveniently stored and transported.
