Suzhou Pio-engineer Machinery is a professional manufacturer of beverage machinery in China.

We can mainly supply: Water filling production line, juice filling production line, carbonated drinks production line, and also aerosol filling machine, 5 Gallon bottle filling production line, and all other

 auxiliary equipment. Our engineers are located all over the world and can provide safe and fast service to your beverage production solutions in your country.

Bottle Rinsing

The bottles are conveyed by the air conveyor from the blowing machine or the bottle uncrambler, through a star wheel they are sent to the rinsing section for bottle cleaning. Bottle clampers are installed on the rotary rinsing machine, bottles will be turned 180° by a clamper along the guide rail to make the bottle mouth face down. The rinse water, which is normally from the water treatment, will be sprayed out from the nozzle of the rinser to rinse the inside and outside wall of the bottle. After the bottle is rinsed and drained, it is held by the bottle holder and turned over 180° along the guide rail to make the bottle mouth upward. Next step, clean bottles will be sent from the bottle rinsing machine through the star wheel to the filling machine.

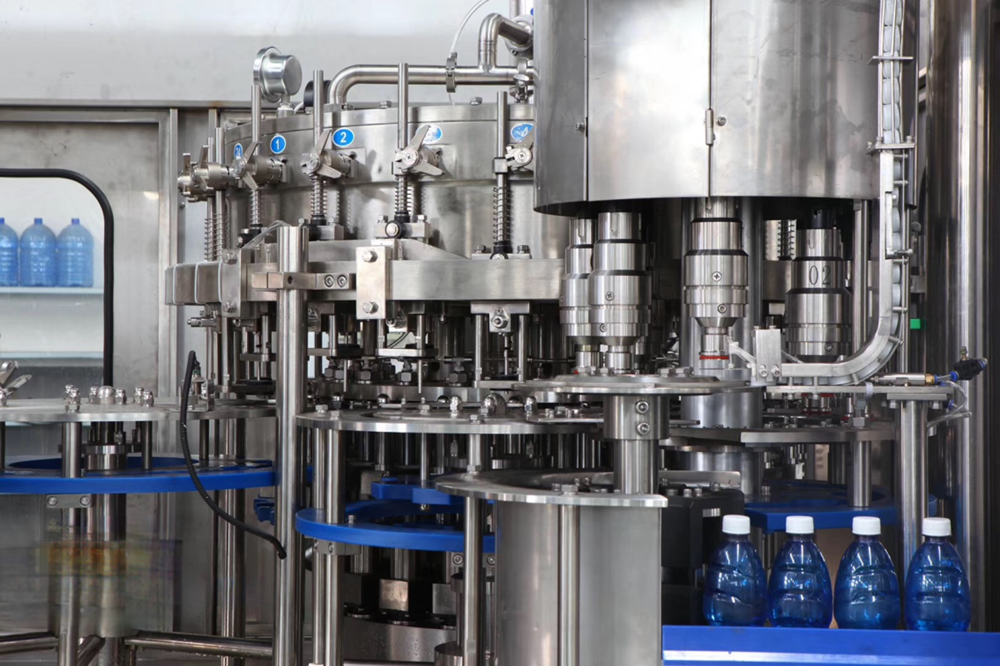

Bottle Filling

The washed bottles are sent from the bottle rinsing machine through the star wheel to the filling machine. Bottles are held and transported by the bottle neck support plate. bottles will be lowered down and raised up under the action of the cam, this action can control the valve open and close.
Filling adopts pressure filling method(pressure filling options for high speed). After filling, the filling valve rises to leave the bottle mouth, and the bottle enters the capping machine through the bottleneck transition wheel.

Bottle Capping

The anti-rotation knife on the capping machine clamps the neck of the bottle to keep the bottle still and prevent rotation. The capping head keeps revolving and rotating on the capping machine, and under the action of the cam, it realizes the actions of cap grasping cap, putting cap, screwing caps, and send out the final bottles. The finished bottle is conveyed from the capping machine to the belt conveyors and sent to the next working staitons.

Machine Features

- All 304/316 stainless steel rinse heads, water spray style inject design with pressure, More efficiency cleaning with less water consumption

- 304/316 Stainless steel high speed high precision filling nozzle, make sure the same liquid level after filling

- All 304/316 stainless steel contact parts & liquid tank, mirror polish, no hidden dirty corner, easy to clean

- The capping head adopts constant torque magnetic device to guarantee capping quality Defective rate ≤0.2%

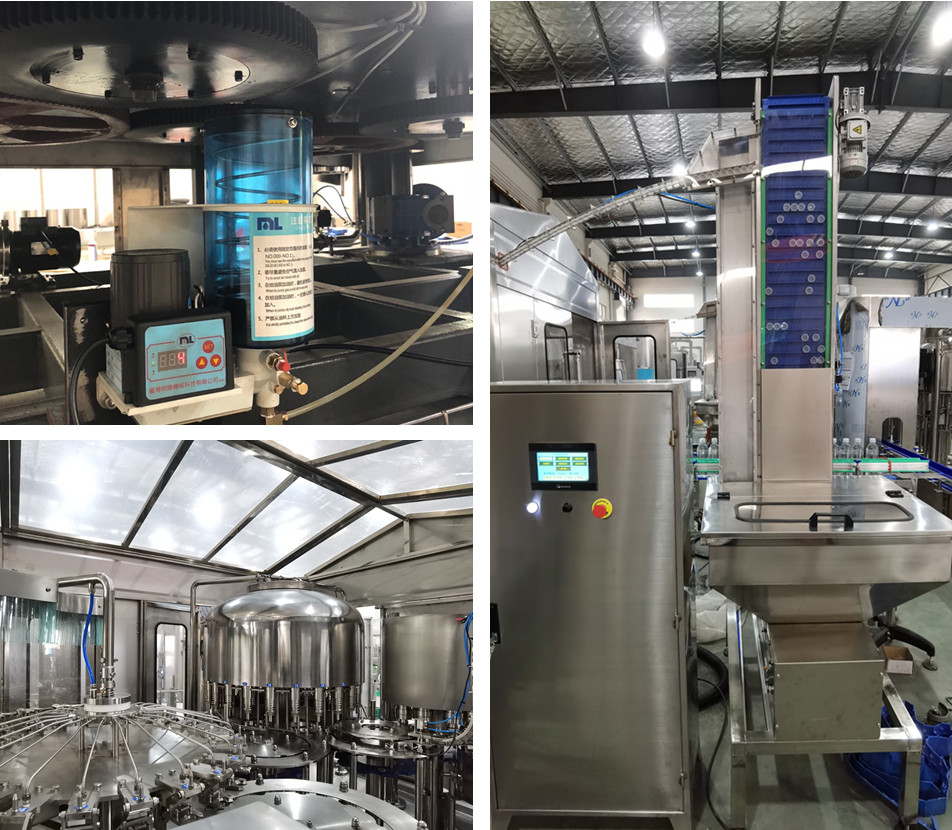

- Automatic lubricate with grease gun and grease pump for all the rotate bearing point

- All the filling machine with transparent fiber glass roof, during the maintain, this roof can be opened and easy for maintain, during machine operation, it is a small clean room to make sure the filling area clean and tidy.

- Separate control cabinet with SUS304 cover and high legs, all the holes in this cabinet are sealed with rubber and equipped with strong air fans, on one hand protect any water and liquid goes into the electrical, on the other hand keep the inside box dry and constant temperature
