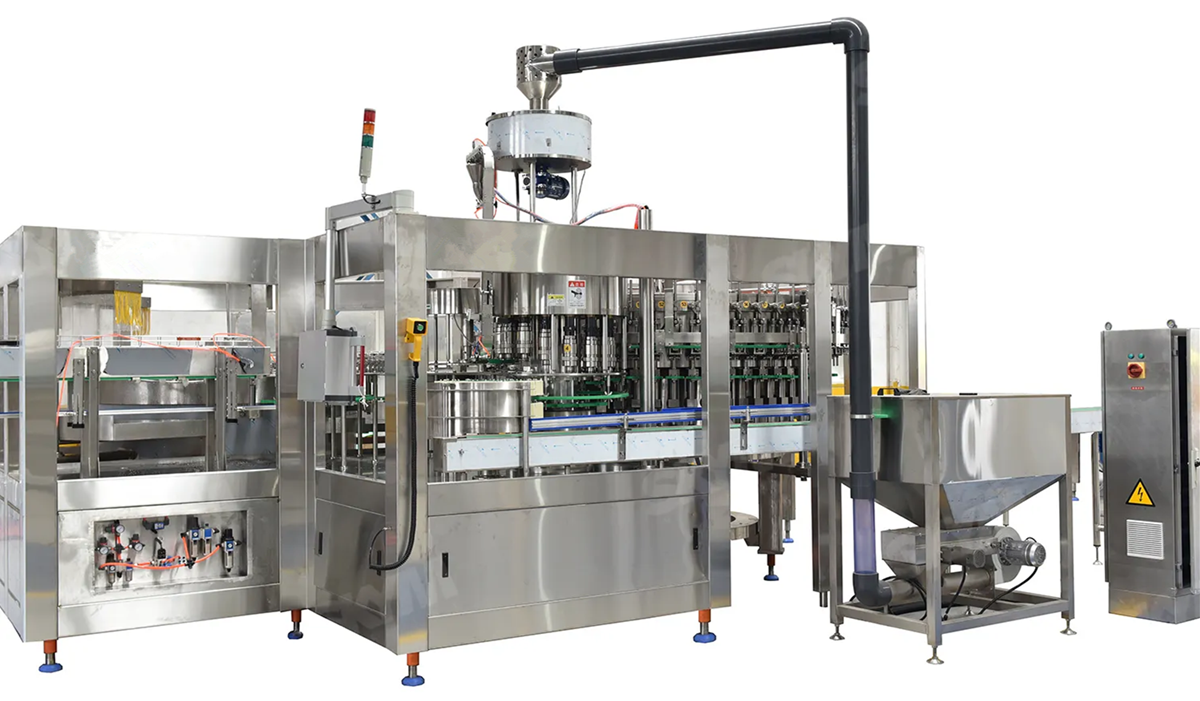

Hot Fill Lines.

Hot filling technology can expand production and packaging opportunities for juices, nectars, soft drinks, isotonics and teas. No matter your beverage type, our unmatched expertise helps you achieve more with extensive technical knowledge and packaging capabilities.
With 25 years of hot filling experience, we continue to lead the industry of Hot Fill solutions worldwide. Over the last thirty years, we have significantly reduced the weight of heat-resistant bottles while retaining their durability and improving design opportunities.

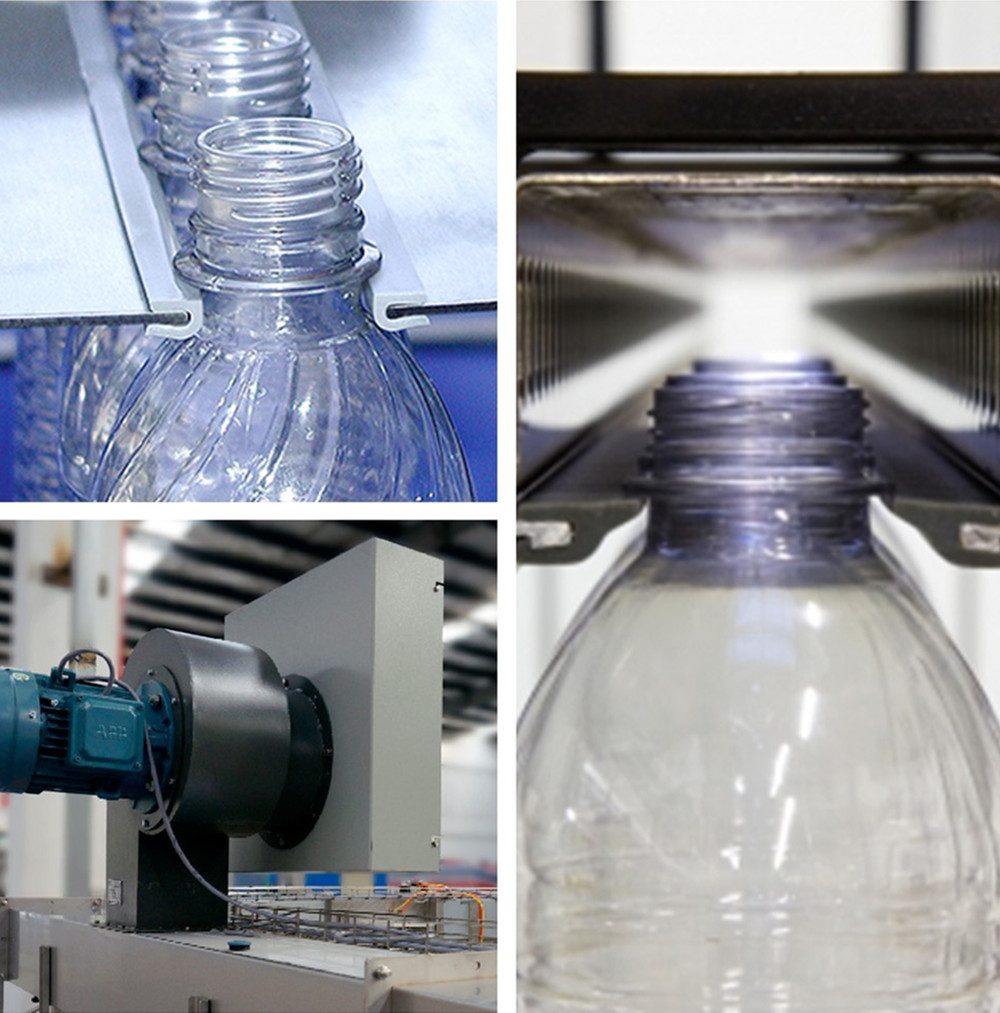

Air Conveyer

- Air conveyor is fixed on the floor, with fan installed on the top.

-Each air fan speed is adjustable with separate control cabinet, easy adapt for different bottle weight and shapes.

-Air filter is positioned at every entrance of air fan, to prevent dust blown into bottles.

-Bottles are held on the neck in the conveyor and transported into filling machine by blowing power.

-All are made of stainless steel SUS 304 /316.

-Rack made by high quality carbon steel welded.

- Automatic bottle drop with alarm if filling machine is stop and bottle jam in the conveyor

-flexible solution for bottle climb up and down to make space more compact

Washing Part

- Washing bottle inside and outside with sterile water

- All 304/316 stainless steel rinse heads, water spray style inject design with pressure, More efficiency cleaning with less water consumption

- 304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing.

- If no bottles comes, water will not wash to prevent washing waste

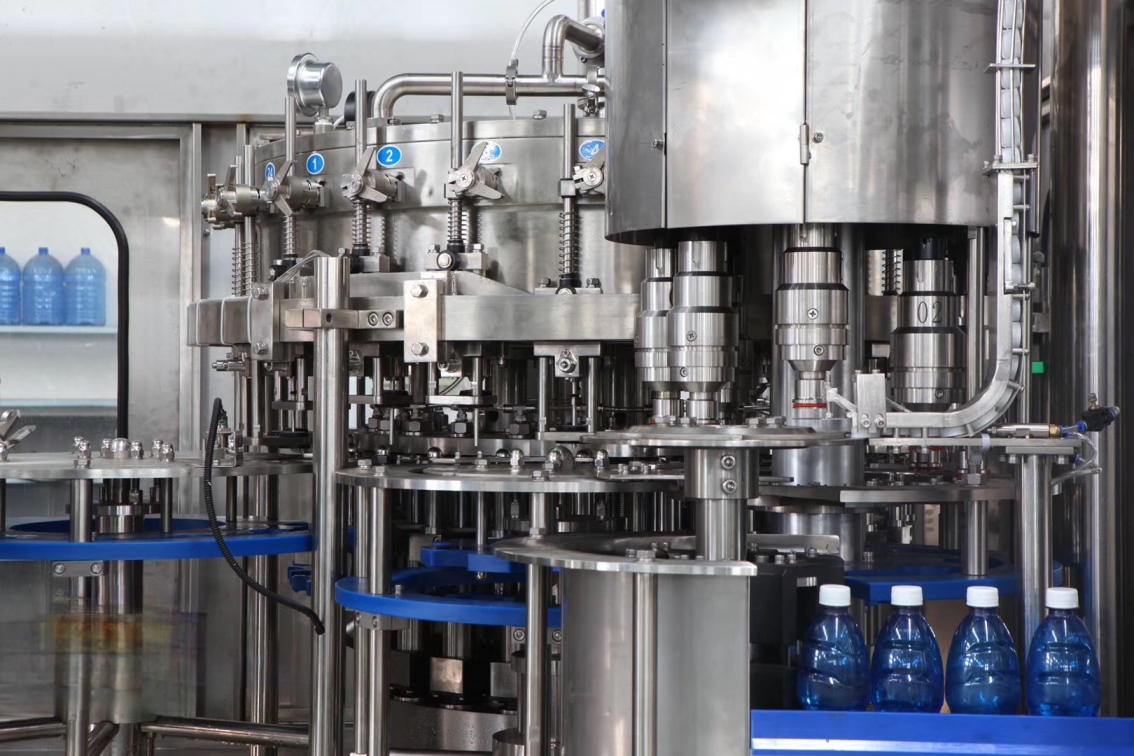

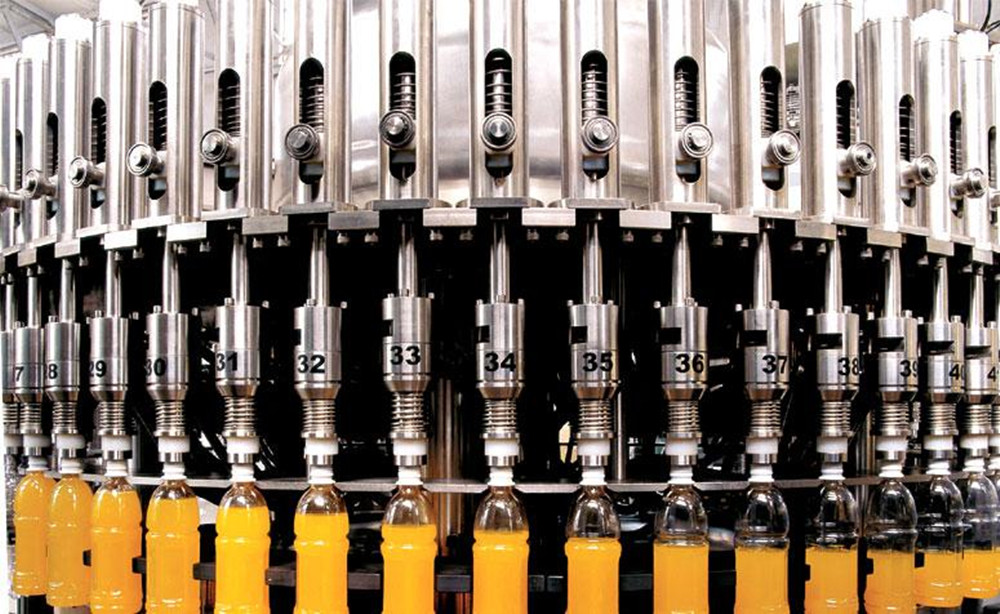

Filling Part

- 304/316 Stainless steel high speed high precision filling nozzle, same liquid level after filling

- All 304/316 stainless steel contact parts & liquid tank, mirror polish, no hidden dirty corner, easy to clean

- All 304/316 stainless steel contact parts & liquid tank with heat treatment, tolerant for 120℃ high degree.

- If no bottle comes, there will be no filling

- With CIP cleaning connection, suitable for automatic CIP cleaning

- Blending motor in top storage tank, make sure juice and beverage is evenly prepared before filling

- Flexible solution for top tank-low tank to reduce foam during filling, which is suitable for milk, tea, coconut and other easy foamed products

- It can be also used to fill beverages with pulp from 2mm to 4mm size.

Capping Part

- Place and capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping

- All 304/316 stainless steel construction

- The capping head adopts constant torque magnetic device to guarantee capping quality Defective rate ≤0.2%

- If run out caps, alarm will be set to notice the operator and stop machine immediately

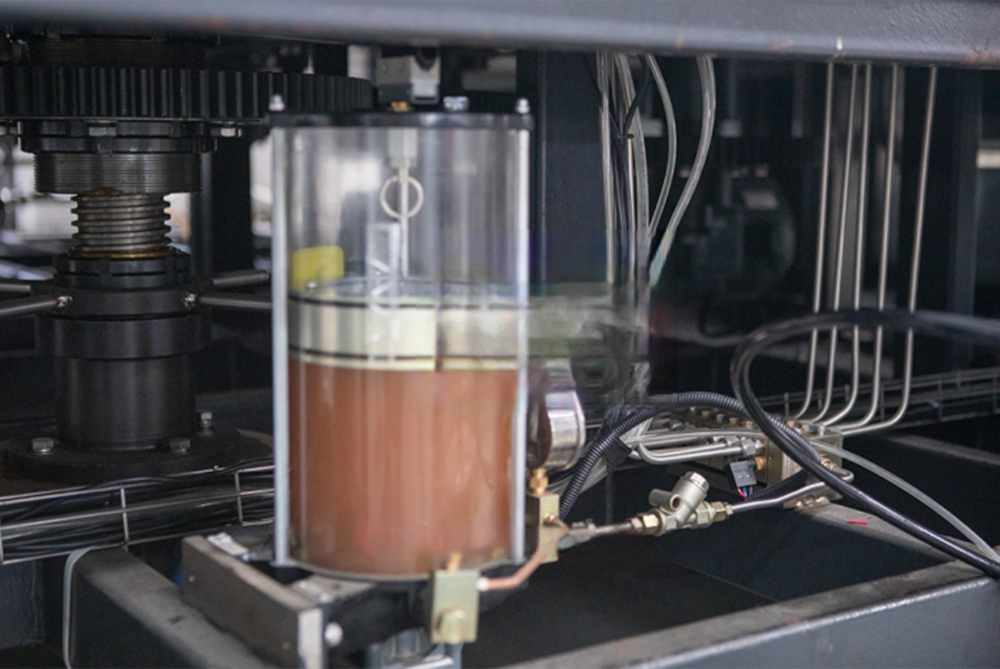

Lubrication System

- Automatic lubricate with grease gun and grease pump for all the rotate bearing point

- Extended free running time of machinery, reducing accidental shutdown

- It ensures longer service life of key components and reduces maintenance costs

Others

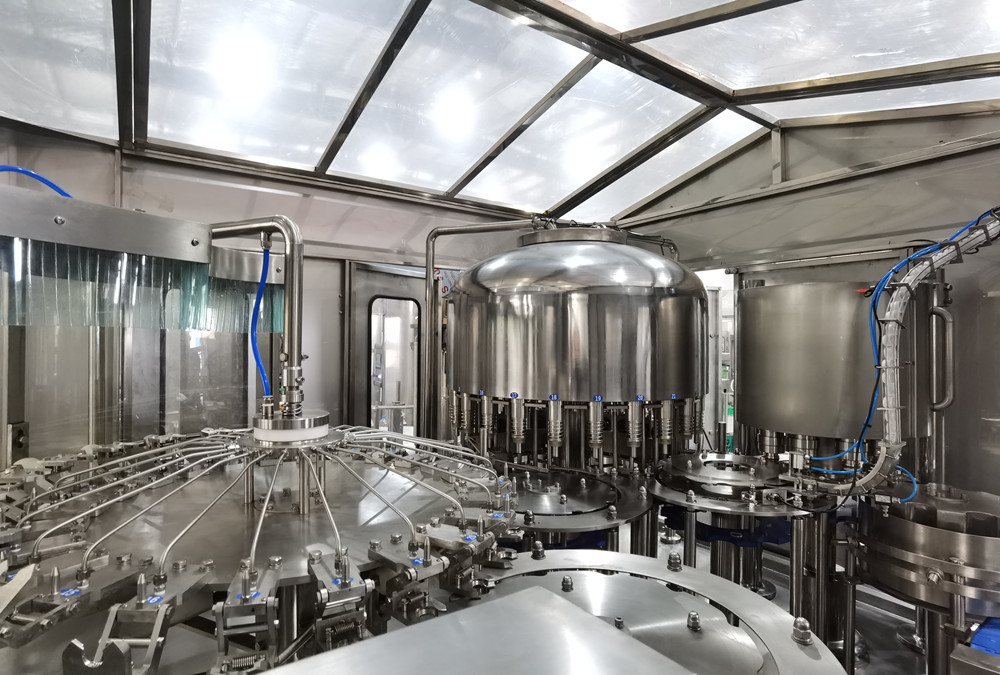

-All the filling machine with transparent fiber glass roof, during the maintain, this roof can be opened and easy for maintain, during machine operation, it is a small clean room to make sure the filling area clean and tidy.

-Separate control cabinet with SUS304 cover and high legs, all the holes in this cabinet are sealed with rubber and equipped with strong air fans, on one hand protect any water and liquid goes into the electrical, on the other hand keep the inside box dry and constant temperature

-Outlet part with automatic detector if there is bottle jam, machine will stop and restart automatically after conveyor is not jam.

-High lightness lamp to show the details of the bottle after filling, if any flaw on the cap and bottles, bottles can be find easily.

We supply flexible automatic camera detect and reject device, it can find and reject bottles with bad caps, bad bottles, wrong filling liquid level and wrong labeled bottles.

-Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only change related the curved plate, wheel and nylon parts is enough.

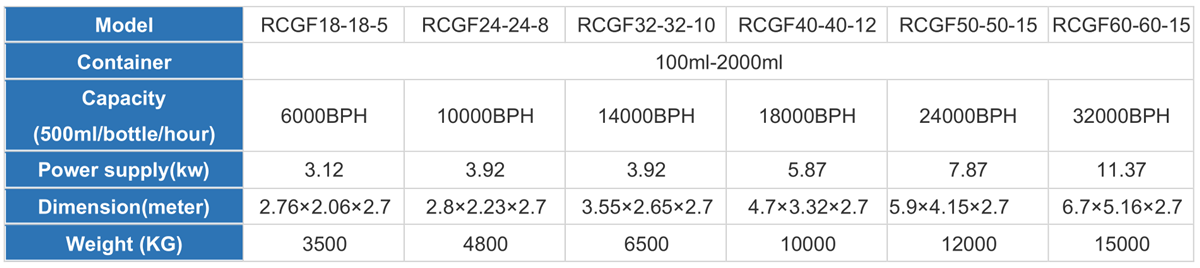

Main Model
