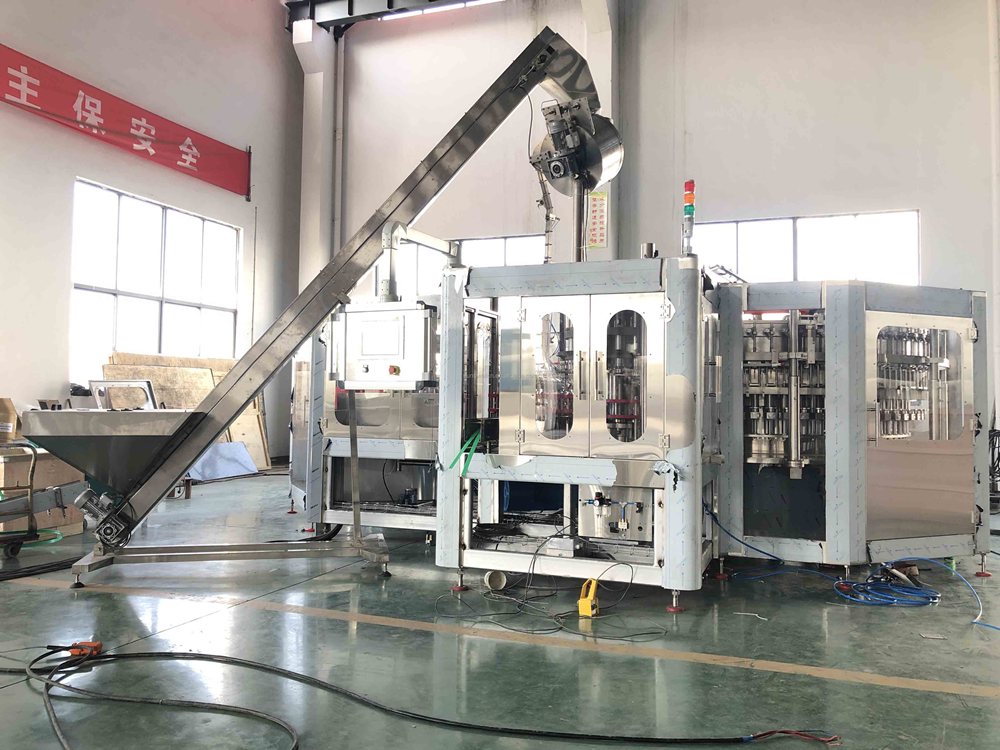

1. Glass bottle carbonated drink filler Triblock Bottle in-feed system
inlet screw with star-wheel cooperate input the bottle, the suitable bottle is 250ml-2000ml.

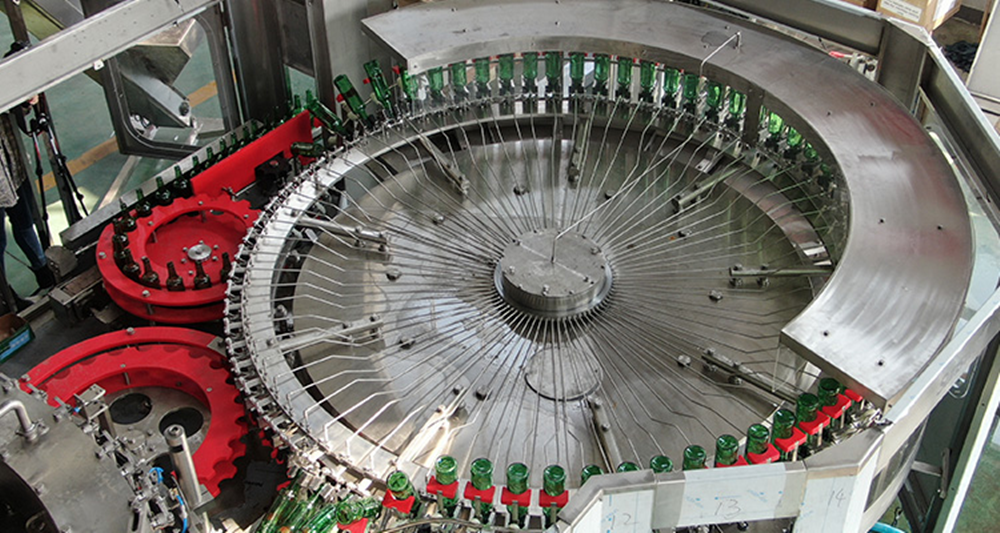

2.Glass bottle carbonated drink filler Triblock Rinser

Carbonated drinks filling machine is rotary washing machine, which mainly used for beverage such as beer or carbonated drink, new
bottle enter the equipment by star wheel, through gripper and overturn mechanism make bottle down, after washing, it overturn
bottle up automatically, then convey to the filling part by star steel, the main material and washing gripper is stainless steel.

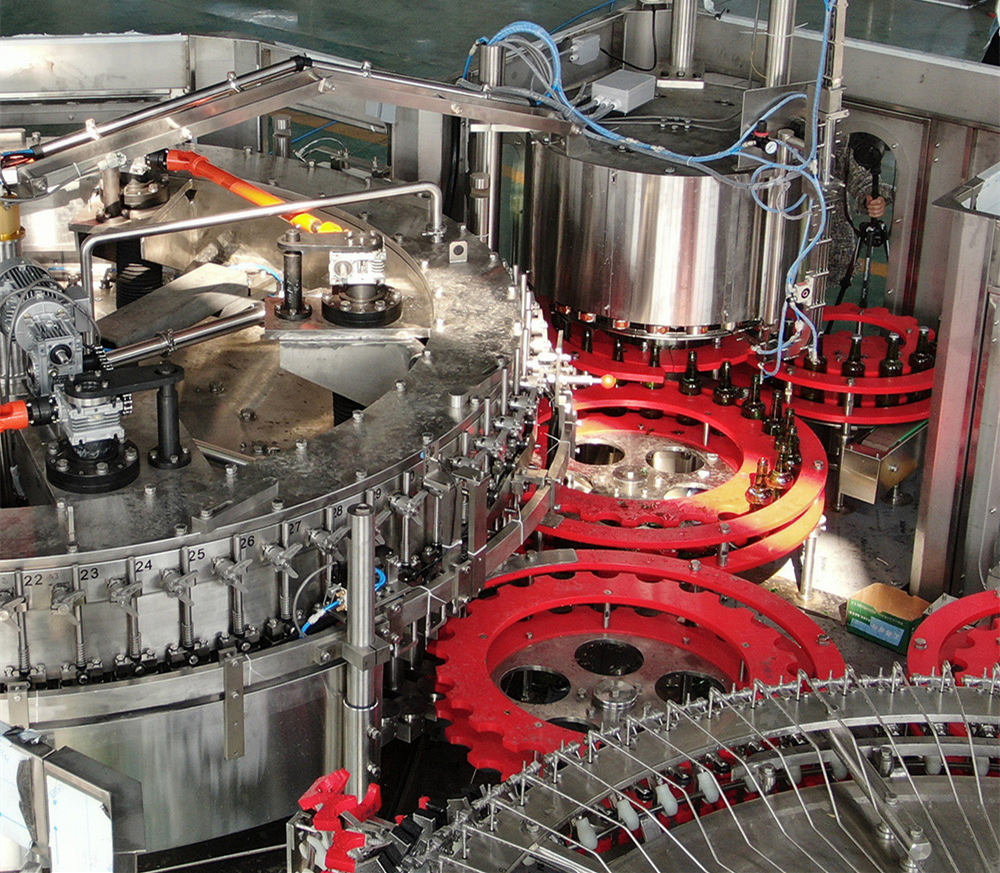

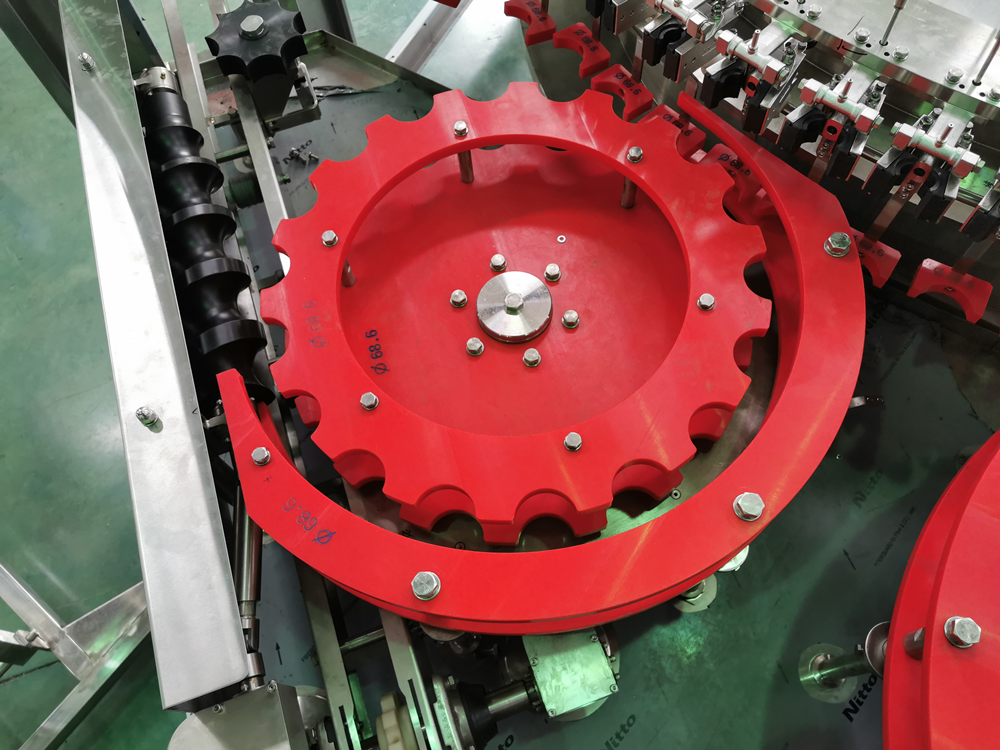

3. Glass bottle carbonated drink filler Triblock starwheel

Carbonated drinks filling machine material is plastic star wheel ,the wheel has block bottle protect device.

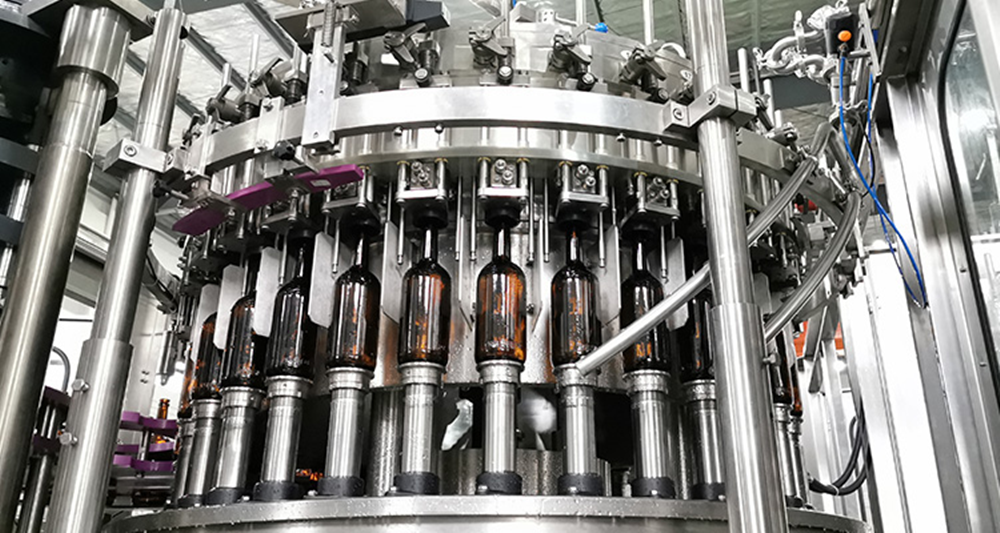

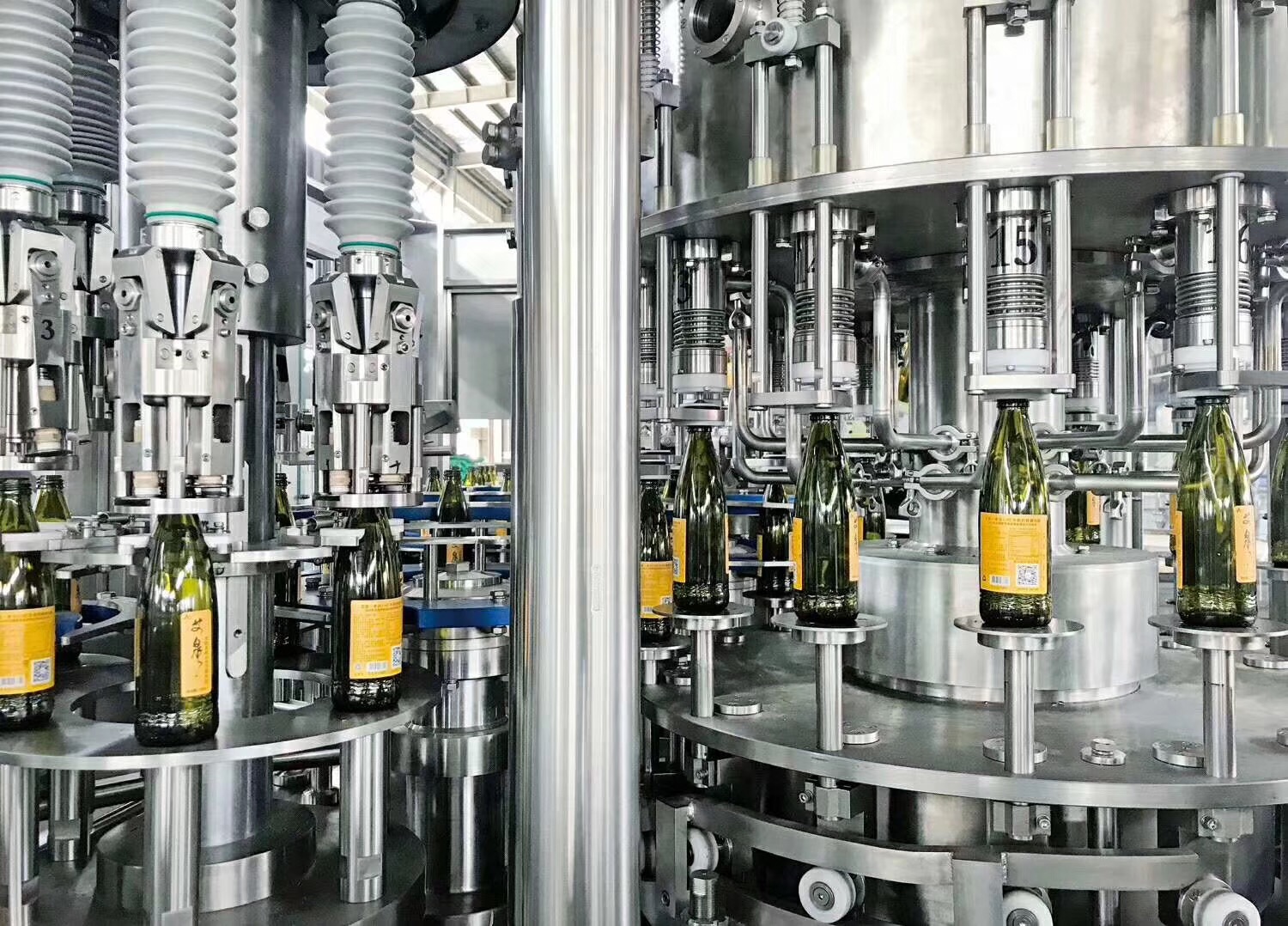

4. Glass bottle carbonated drink Triblock Filler

A. Filling valve use isobar machinery valve, double vacuum valve, or flow meter counter pressure filler valve, with High speed and
big flow, the high accuracy filling valve, filling speed fast, the liquid level is stable.
B. Main drive adopt gear drive independent, high efficiency, small noise, long life, maintenance-free, transducer can control the
main motor speed, the machine adopt Variable-frequency variable speed, whole operations area ,engine base is stainless steel
contain carbon steel
C. Guide bottle system, simple structure, according to bottle style, can change
D. The whole machine can be controlled automatically by PLC
E. Filling hydraulic material liquid level height adopts liquid level probe control, liquid level steady, filling reliable
F. The machine important parts and electrical elements is import production
G. Filling hydraulic material can be controlled automatically and have CIP washing connector.

5. Glass bottle carbonated drink Triblock Capper
The bottle into the click wheel through the transition card bottleneck Capping Machine. Rotary Capping Machine knife stuck on the
only bottleneck location, keeping the bottle upright and prevent rotation. Capping Machine Capping head to remain in the
revolution and rotation, under the action of the cam to achieve grasping cap, capping, screw cap, cap off action, complete the
capping process. Management Capping Machine is located in the top cover, through drop-cap rail and cover plate connected Capping
Machine allocated. Finished bottle through the bottle capping machine sent from the click wheel to the bottle conveyor chains,
conveyor chains send out the triple play by the filling machine, into the next process.

Others

Output bottle star wheel part
Nylon wheel and conveyor belt cooperate output the bottle.
Output bottle conveyor belt part
Conveyor motor use frequency control of motor speed, which keep pace with the 3-1 machine. Prevent overturned bottle
Rack part
Rack is welded by high quality carbon steel, Antirust processing and spray surface. The surface is covered by the SUS304.
