Carbonated soft drink soda water beverage filling bottling machine equipment plant production line

It is mainly used for carbonated soft drink, such as cola, soda water and so on. The final filling temperature will be around 0-5 degree centigrade. The machine design is shorten the time for the drink material contact with outside, increase the sanitation condition throughout economy benefit.

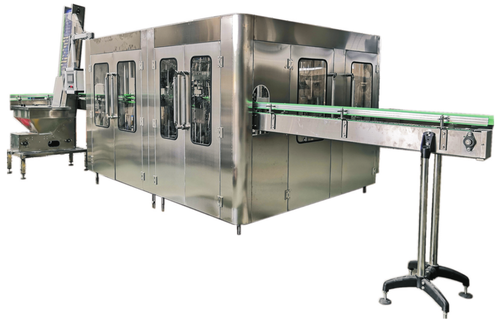

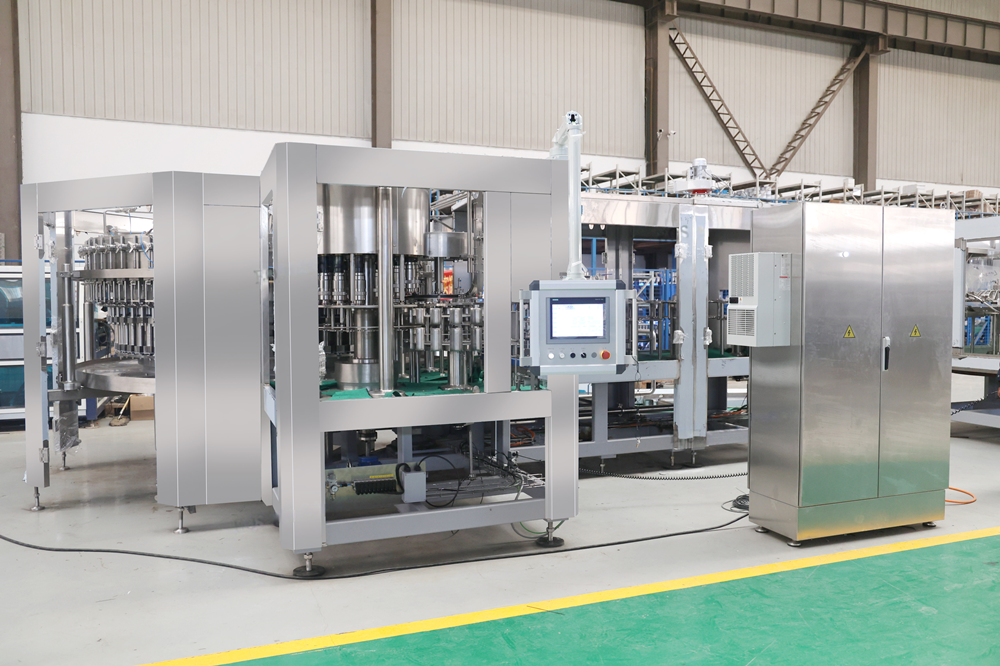

Product Application : This washing filling capping machine is mainly used for Carbon dioxide drink, such as cola, soda water and so on.The machine design is shorten the time for the drink material contact with outside, Increase the sanitation condition throughout economy benefit.

Capability Character : It adopts hanging type conveying-bottle structure to make changing bottle model more convenient, faster and easier. The main machine adopts advanced PLC control technology. The key electric elements adopt international famous products.

Capability Character
1. The whole machine adopts the way of air supply device and hanging bottle neck, the bottle loading speed is fast and the bottle will not be squeezed; 2. Bottle neck sticking technology is adopted for flushing bottle mouth to avoid contact with thread and make it more hygienic;
3. The new filling valve is used for filling, and the quantity is accurate;
4. The whole machine adopts advanced man-machine interface operation, PLC control and variable frequency stepless speed regulation. It has the functions of cap supply system, automatic detection of filling temperature, high-temperature alarm of materials, low-temperature shutdown, automatic backflow, no bottle without cap, no bottle waiting, no cap shutdown, etc.

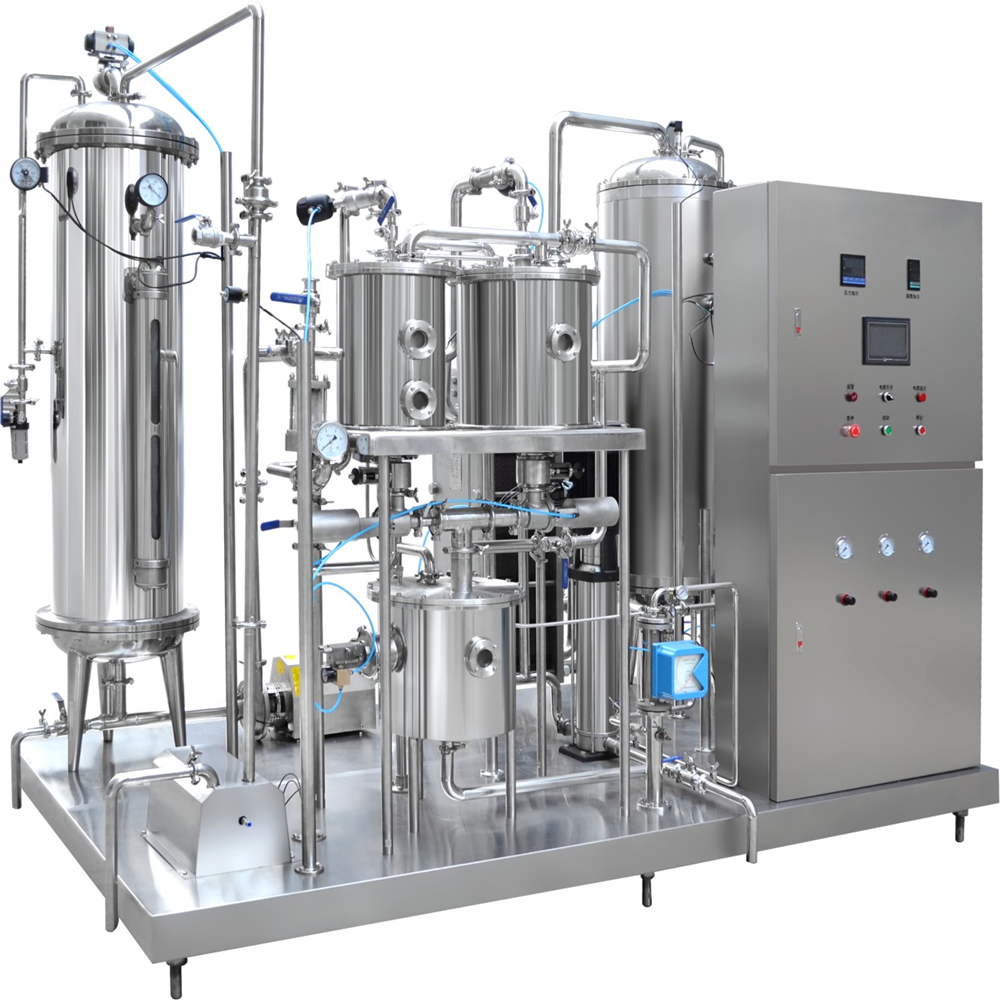

Beverage mixer (carbonated drinks mixer) is used for producing all carbonated beverages (water, syrup, and CO2 mixing), for example lemon, coca cola, fruits juice and so on. It is the main equipment in whole beverage production line.

The sugar and water mixing according to proportional ratio feeding into the material mixer by material pump through flow meter. In the mixer, there is stainless steel corrugated sheet, which can make the beverage and C02 good contact each other and mixing. Mixer feeding entrance pass 0.4MPa CO2, Through static mixer, CO2 and liquid in the pipe mixing and achieve to required gas content(＜3.5）And then enter the storage tanks preparation pressure, the CO2 was fully dissolved in the beverage Storage tank should be equipped with pressure(filled CO2).

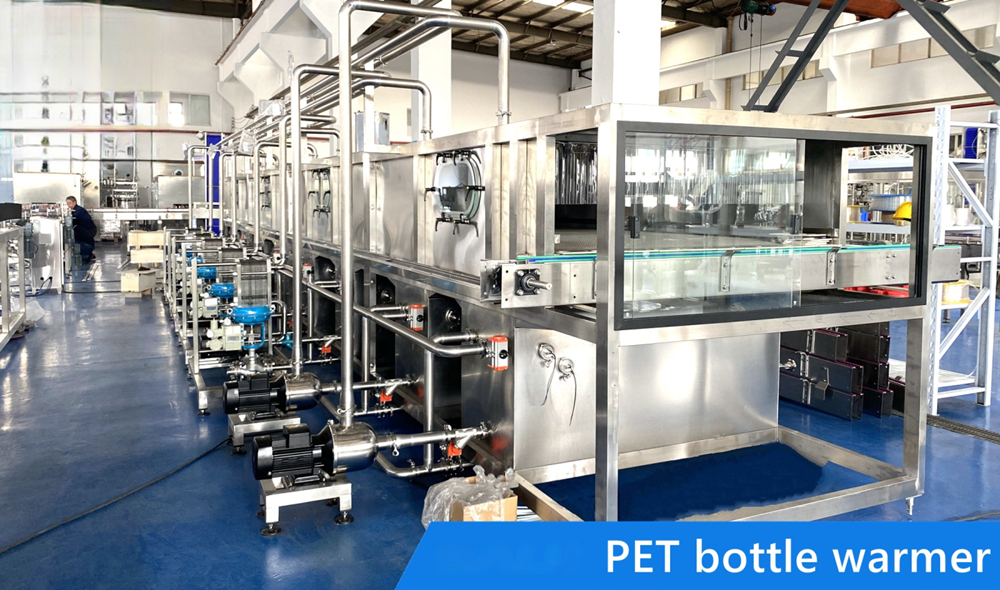

Bottle warmer

Due to the fact that carbonated beverages are filled at low temperatures (usually 4-10 ℃), and the room temperature in summer is much higher than this, moisture in the air is prone to condensation and condensation on the outer surface of the bottle, which brings inconvenience to subsequent packaging and operation, such as labeling. Especially if cardboard boxes are used for packaging, wetting the cardboard with dew can cause serious damage. So a thermos bottle machine must be set up after the filling machine to heat the bottle body to room temperature. The thermos bottle machine is a tunnel type spraying device that heats the bottle body through a heat exchange method of circulating hot water spraying, with three permanent temperature zones (more temperature zones can also be designed). After segmented heating, the temperature in the beverage center reaches room temperature. The inlet and outlet of the thermos bottle machine adopt dynamic transition to reduce extrusion, bottle pouring, and manual intervention.
