Applications

Suitable for various types of fruit juice, tea drinks, dairy products, purified water, condiments, beer, sports drinks and other food and beverage industries ,pharmaceutical, health food, daily chemical industry and other industries

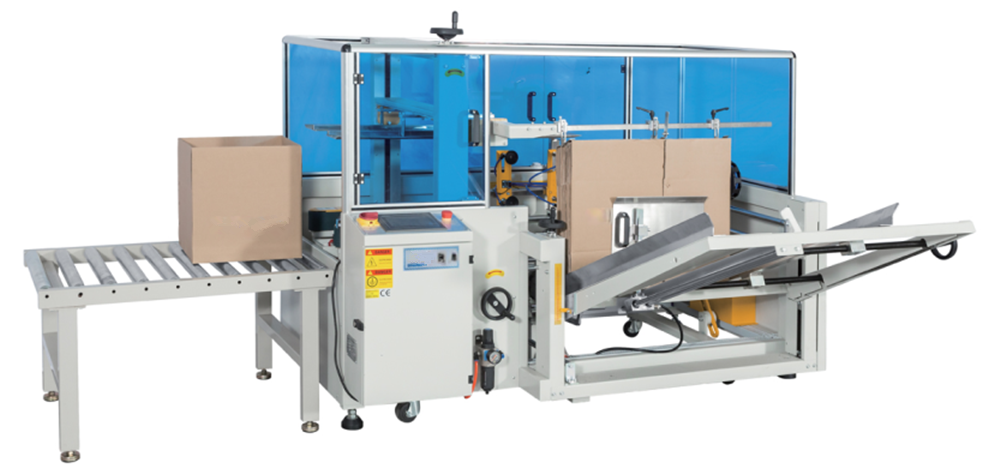

Carton Forming Machine

The action of the carton packaging machine can take out the box, form it, fold the cover, and seal the back. Firstly, put the raw material flat cartons on the storage (50-100 cartons can be stored), suck the carton out of the carton storage through the suction cup, shape the carton while sucking and pulling out, then fold the front and rear and left and right covers, and finally complete Tape back cover.

Features
The design and manufacture of the equipment meet the requirements of the production line process and layout, with beautiful appearance and good manufacturing process;
Low power and water consumption, simple and convenient operation, adjustment and maintenance;
The machine has good self-safety protection functions, such as overload protection and safety door;
No carton alarm function;
Box storage mechanism: About 50 unformed cartons can be placed at a time (depending on the thickness of the carton) and can be replenished at any time.

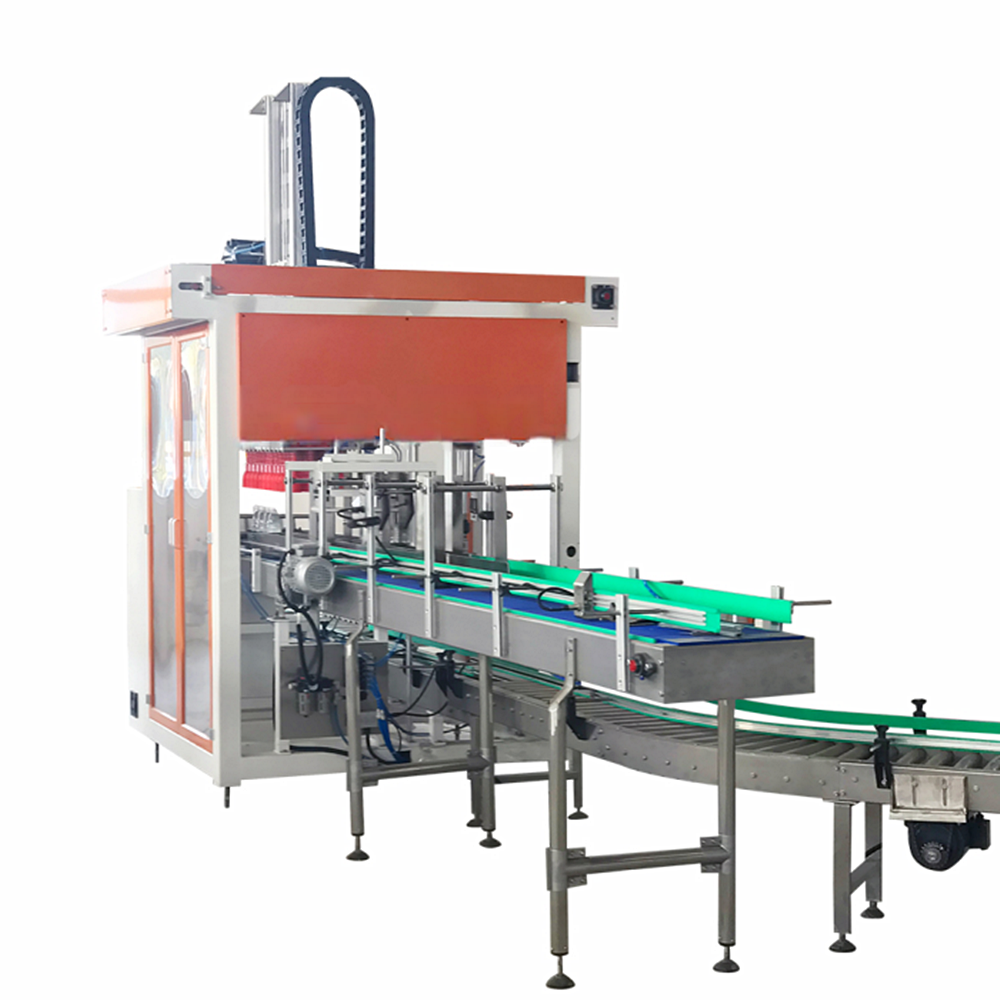

Carton Loading Machine

Equipment components:
It is composed of a lane divider, a clapboard feeding conveyor, a box packing machine host, a box packing handle, a box supporting mechanism, a box packing conveying and positioning device, and an electric control system.

Carton Loading Work Process

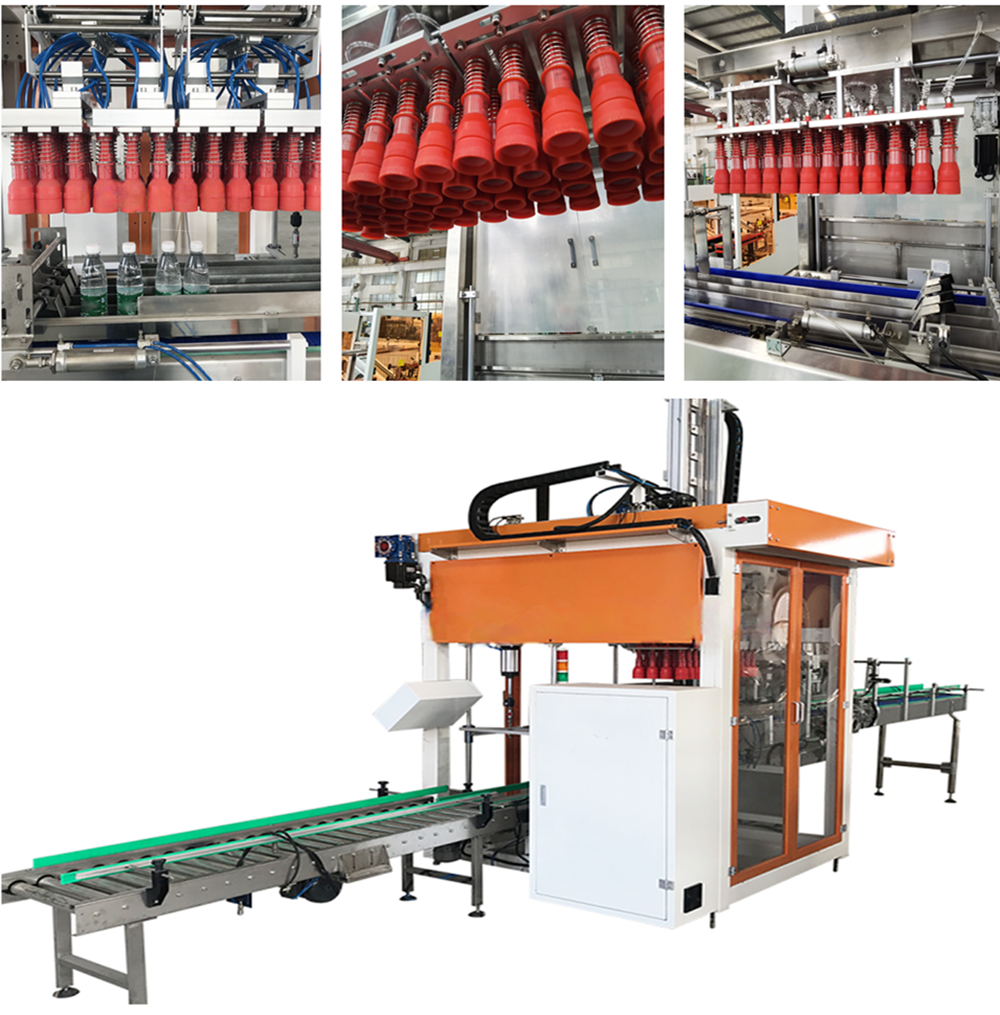

The bottles are divided into 4 rows by the lane divider and enter the feeding conveyor with partitions, and then transported to the box packing machine. The gripper clamps the bottle cap and puts it into the opened carton. When the gripper is lifted, the full box Convey to the box sealing machine, empty box input.

This machine is controlled by PLC+touch screen, and it has the functions of alarming and stopping when there is no bottle, and no packing when there is no bottle. The equipment is simple to operate, convenient to manage, and reduces production personnel and labor intensity. It is an indispensable equipment for automatic large-scale production.

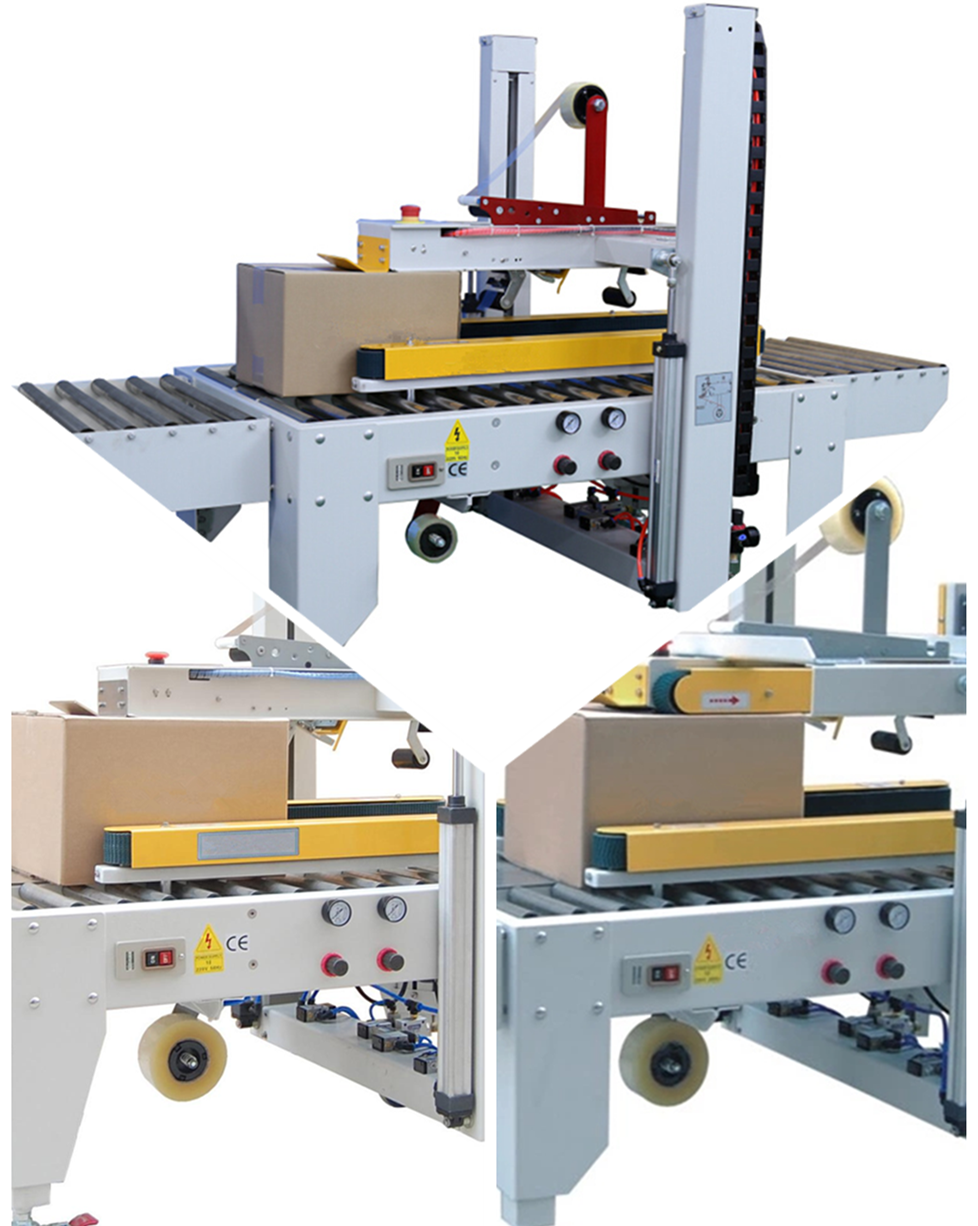

Carton Sealing Machine

The working principle of the sealing machine is to seal the upper and lower bottom of the outer carton with tape, and adapt to different sizes of cartons by adjusting the height and width.
The case sealing machine has a wide range of uses, and is suitable for various industries such as food and beverage, daily necessities stores, pharmaceuticals, and chemical products.
