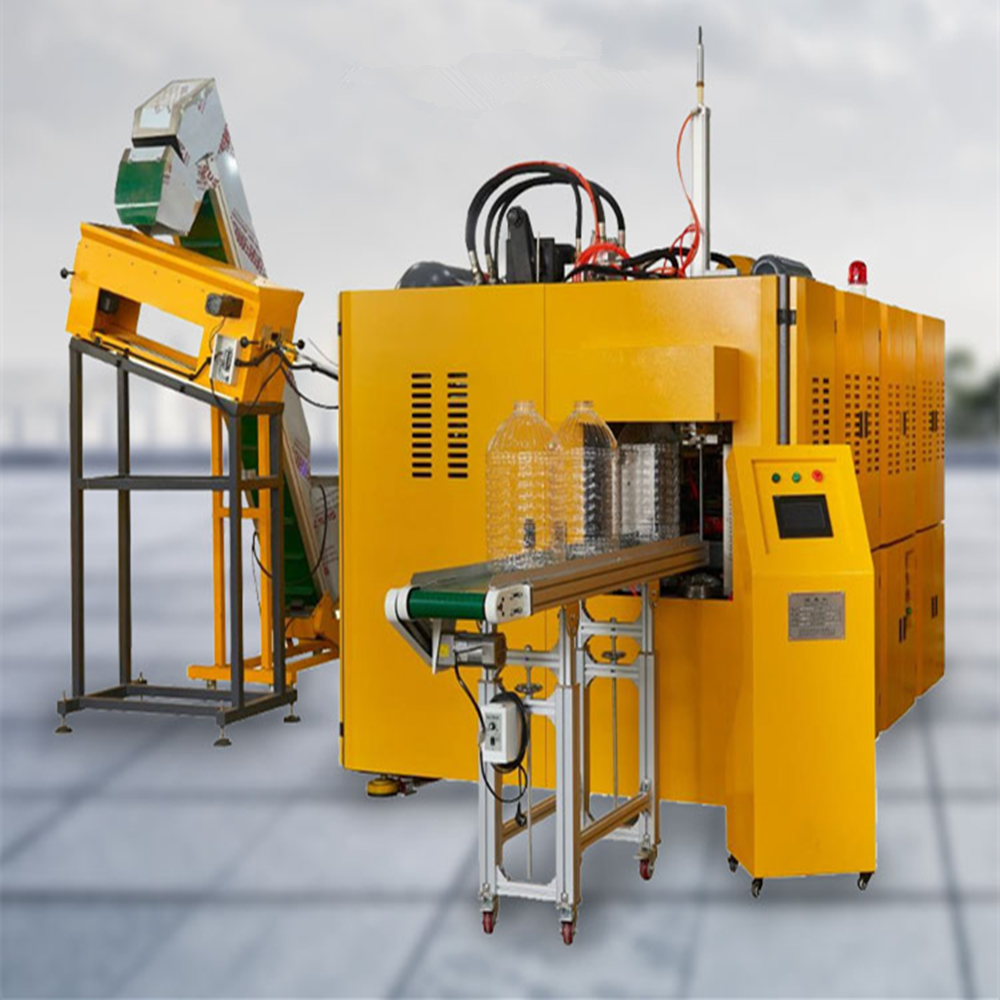

This fully-automatic bottle blowing machine is a linear type bottle blowing machine, which is designed for 3L 5L and 10L bottles.

Features of main body :

1). Stable performance with advanced PLC.
2). Automatic preform conveyer to save human cost.
3). Preform self-rotation and infrared pre-heater revolution assure the even distribution of heat, which improve the bottle shaping rate, increase the production.
4). High adjusting performance to enable preheat the preforms perfectly by adjust the voltage control area in the PLC, which could adjust the temperature of the infrared lights in the pre-heater, and keep the proper temperature and humidity invariable.
5). High safeties with security automatic-locking device in each mechanical action, which will make the production into a perfect safe environment, in case of the breakdown in certain procedure.
6). Introduce the FESTO air cylinder to avoid contamination and noise.
7). Satisfaction with different atmospheric pressure for blowing and mechanical action by dividing the blowing and action into three parts in the air pressure diagram of the machine.
8). Strong clamping force with high pressure and double crank links to lock the mould.
9). Two ways of operating: automatic and manual.
10). Low cost,high efficiency,easy operation and maintenance etc, profited from the fully automatic technological process.
11). Ideal cooling system make the finished bottles without any flaws.

1 New Auto Preform Unscrambler System.

*Adopts one-way preform-feeding structure and preform-separating by servo motor structure which solve the preform block and abrasion problem.

*There are two photoelectric sensors to control preform-loading motor and preform-separating cylinder that will warn the operator to add the preforms into the hopper when lacks preform instead of stopping the machine.

2 New Heating System.

*Perfect heating system design decrease power consumption.
*Special oven design helps power saving and easy maintain.
*Each lamp position and temperature can be adjusted.
*Cycle air-cooling system keeps the oven temperature constantly.

3 Servo Technology Innovation On Clamping System & Stretching.

*Adopts servo motor to drive the two cranks to control the clamping system which can shorten the mold-clamping time and improve productivity, and also solve the swelling mold and big joint line problem with the effect of pressurize plate.
* Servo motor using for stretching to ensure the bottle blowing speed faster and more stable bottle quality.

4 Easy To Change Bottle Shape.

*Drawer type mold structure design is easy for mold changing. Within one hour can change a mold on the condition of same bottleneck diameter.
